Kymco Motorcycles
MXU 150
| ENGINE | |
| Engine | SOHC, air-cooled, four-stroke |
| Displacement | 149cc |
| Power | 11 HP @ 7000 RPM |
| Bore x Stroke | 62 x 49.5 mm |
| Compression ratio | 9.7:1 |
| Fuel system | Carburettor |
| Ignition | CDI |
| Starting system | Electric with kick backup |
| Transmission | CVT automatic with reverse gear |
| Final drive | 2WD, Chain |
| SUSPENSION | |
| Front suspension | Single A-arm with twin shock absorbers |
| Rear suspension | Unit-swing with single shock absorber |
| Front tire size | 21 x 7 – 10 inch |
| Rear tire size | 22 x 10 – 10 inch |
| Front brakes | Dual mechanical drum |
| Rear brakes | Hydraulic disc |
| CAPACITY | |
| Carrying | 15 kg (front) / 20 kg (rear) |
| Towing | 150 kg |
| SIZE / WEIGHT | |
| Length x Width x Height | 1776 mm x 950 mm x 1040 mm |
| Wheelbase | 1115 mm |
| Seat height | 750 mm |
| Ground clearance | 195 mm |
| Fuel capacity | 8.1 l |
| Dry weight | 175 kg |
| OTHER | |
| Colour choices | Red |
MXU 250
| ENGINE: | |
| ENGINE TYPE | Single-Cylinder |
| CYLINDERS | 1 |
| ENGINE STROKE | 4-Stroke |
| VALVE CONFIGURATION | SOHC |
| DISPLACEMENT (CC/CI) | 249 / 15.2 |
| CARBURETION TYPE | Carburetor |
| TRANSMISSION: | |
| TRANSMISSION TYPE | Continuously Variable (CVT) |
| PRIMARY DRIVE (REAR WHEEL) | Chain |
| REVERSE | Yes |
| WHEELS & TIRES: | |
| FRONT TIRE (FULL SPEC) | AT 22 X 7-10 |
| REAR TIRE (FULL SPEC) | AT 22 X 10-10 |
| BRAKES: | |
| FRONT BRAKE TYPE | Disc |
| REAR BRAKE TYPE | Disc |
| TECHNICAL SPECIFICATIONS: | |
| WHEELBASE (MM) | 1183.6 |
| DRY WEIGHT (KG) | 213.2 |
| FUEL CAPACITY (L) | 12.5 |
| SEATS: | |
| SEAT HEIGHT (MM) | 807.7 |
| NUMBER OF SEATS | 1 |
| DRIVE LINE: | |
| DRIVELINE TYPE | 4X2 |
| NUMBER OF DRIVELINE MODES | 1 |
| STORAGE: | |
| REAR RACK | Standard |
| FRONT RACK | Standard |
| LIGHTS: | |
| HALOGEN HEADLIGHT (S) | Standard |
MXU 450
| Colors | Engine Type |
| Red, Blue, Green (True Timber Camo) | SOHC 4-Stroke 4-Valve |
| Suspension | Displacement |
| 4 Wheel Independent Suspension | 443cc |
| Racks | Bore x Stroke |
| Front and Rear Rack | 89×71.2mm |
| Instrumentation | Claimed Horsepower |
| Multi-Function Digital Instrument Display | 33hp |
| Lighting | Claimed Torque |
| Dual Halogen Headlights W/LED Markers | 24.63ft/lb @ 6500rpm |
| Storage | Fuel management system |
| Under Seat Storage | EFI Throttle Body |
| Winch Mount | Cooling |
| Winch Mounting Plate | Liquid |
| Tow Hitch | Ignition |
| 2″ Receiver Hitch | Electric |
| Limited Factory Warranty | |
| 1 Year | |
| Transmission | Front Suspension |
| CVT Automatic H-L-N-R-P W/ Engine Braking | Dual A-Arm |
| Drive Modes | Rear Suspension |
| On-Demand 2WD/4WD With Differential Lock | Dual A-Arm |
| Front Brakes | Tires-Front |
| Linked Hydraulic Dual Disc | 24x8x12 |
| Rear Brakes | Tires-Rear |
| Linked Hydraulic Disc | 24x10x12 |
| Shocks | |
| 5 Position Adjustable Oil Dampened Shocks | |
| Length | |
| 83.6″ | |
| Width | EPA / C.A.R.B. Compliant |
| 43.4″ | Yes/RED STICKER |
| Height | |
| 46.9″ | |
| Wheelbase | |
| 47.9″ | |
| Rake/Trail | |
| 10.5″ | |
| Claimed Dry Weight | |
| 608 lbs | |
| Fuel Capacity | |
| 4.7 gal | |
| Towing Capacity | |
| 1050lbs |

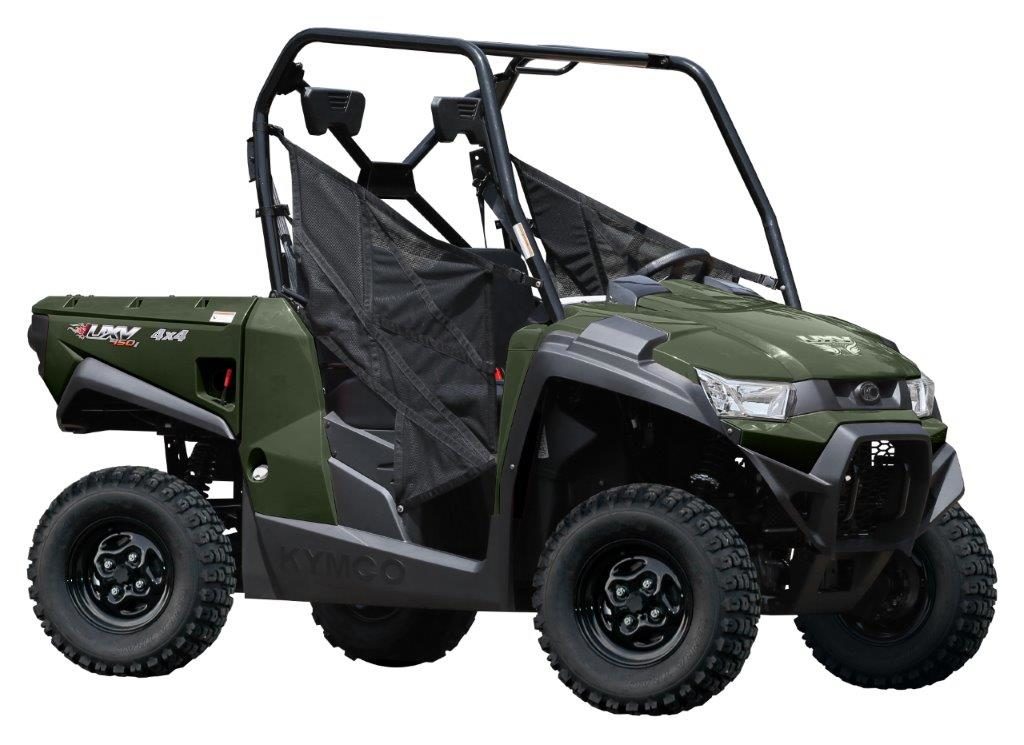

UXV 450
| ENGINE TYPE | Single-Cylinder |
| CYLINDERS | 1 |
| ENGINE STROKE | 4-Stroke |
| VALVE CONFIGURATION | SOHC |
| DISPLACEMENT (CC) | 443 |
| CARBURETION TYPE | Fuel Injected |
| TRANSMISSION: | |
| TRANSMISSION TYPE | Continuously Variable (CVT) |
| PRIMARY DRIVE (FRONT WHEEL) | Shaft |
| REVERSE | Yes |
| WHEELS & TIRES: | |
| FRONT TIRE (FULL SPEC) | 25 X 8-12 |
| REAR TIRE (FULL SPEC) | 25 X 10-12 |
| BRAKES: | |
| FRONT BRAKE TYPE | Hydraulic Disc |
| REAR BRAKE TYPE | Hydraulic Disc |
| TECHNICAL SPECIFICATIONS: | |
| WHEELBASE (MM) | 1828.8 |
| DRY WEIGHT (KG) | 489.9 |
| FUEL CAPACITY (L) | 32.2 |
| SEATS: | |
| NUMBER OF SEATS | 2 |
| DRIVE LINE: | |
| DRIVELINE TYPE | Selectable 4X2 / 4X4 |
| NUMBER OF DRIVELINE MODES | 2 |
| DIFFERENTIAL LOCK | Standard |
| LIGHTS: | |
| HALOGEN HEADLIGHT (S) | Standard |
UXV 700
| ENGINE TYPE | Single-Cylinder |
| CYLINDERS | 1 |
| ENGINE STROKE | 4-Stroke |
| VALVE CONFIGURATION | SOHC |
| DISPLACEMENT (CC) | 695 |
| CARBURETION TYPE | Fuel Injected |
| TRANSMISSION: | |
| TRANSMISSION TYPE | Continuously Variable (CVT) |
| PRIMARY DRIVE (FRONT WHEEL) | Shaft |
| REVERSE | Yes |
| WHEELS & TIRES: | |
| FRONT TIRE (FULL SPEC) | 26 X 9-14 |
| REAR TIRE (FULL SPEC) | 26 X 11-14 |
| BRAKES: | |
| FRONT BRAKE TYPE | Hydraulic Disc |
| REAR BRAKE TYPE | Hydraulic Disc |
| TECHNICAL SPECIFICATIONS: | |
| WHEELBASE (MM) | 1910.1 |
| DRY WEIGHT (KG) | 552.5 |
| FUEL CAPACITY (L) | 32.2 |
| SEATS: | |
| NUMBER OF SEATS | 2 |
| DRIVE LINE: | |
| DRIVELINE TYPE | Selectable 4X2 / 4X4 |
| NUMBER OF DRIVELINE MODES | 2 |
| DIFFERENTIAL LOCK | Standard |
| LIGHTS: | |
| HALOGEN HEADLIGHT (S) | Standard |
